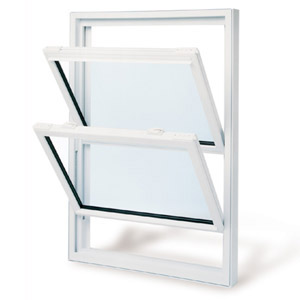

Double Hung Tilt
Our Premium Double Hung Window with easy clean heavy duty tilt in hardware. Smooth operation with excellent energy ratings. Available with countless options in order to provide a traditional or contemporary look. Enjoy total comfort with our Lifetime guarantee.
Frame and Sash
- Fusion Welded Frame & Sash
Welding creates a seamless, continuous profile and eliminates potential air leaks and water penetration through frame and sash corners. - Maintenance Free Solid uPVC Vinyl Profiles
The multi-chambered design provides structural strength as well as insulating air pockets which reduce heat and cold transfer. - True Over-The-Sill Drainage
Our High Tech Compound-Cut and welded frame creates a sill without the need for drain holes. This eliminates any cold air return into your home found in traditional drainage systems. - Integral Lift Rail
Permit sashes to be operated with ease.
- Versatile & Flexible
For new homes, these windows are built to your individual needs with optional nailfin and brickmould, with jamb returns and frame extensions to fit your type of wall construction. - Size Limitations
- Width: Min.12″ Max.42″
- Height: Min.24″ Max. 80″
- Min. width: 16-1/2″ if height is < 27-1/2″
Optional: Up to 48″ wide
Glass
- Double Bond Glazing System – Flexible dual durometer seals hug the glass from both sides. The system also includes a wet glazing tape applied to the interior side. The result is an unprecedented barrier against air and water penetration.
- Commercial Glazing Technique – Exterior glass stops combined with Double Bond Glazing, are more effective in maintaning a well sealed window.
- High Performance Glass – Choose Solar Gain Low E for free Solar heat and Solar Shield for reducing Solar Heat gain. Argon and Krypton Gas fillings will maximize heat savings! KeepSafe Glass is the laminate of choice for security, quiet and safety!
- Warm Edge Spacer Technology – Only the best warm edge spacer will reduce perimeter condensation on an insulating glass unit, fight mold and increase the comfort of your home.
- IGMAC Approved –
Certification #’s – Intercept™ #029912 – Tempsmart™ #2190-020508G
Hardware
- Triple Seal– Three layers of premium fin seal stop air and water as they reduce sound transmission. Benefit from the best sliding seals available! Compression style seals close tight where the sash meets the frame and sliding is not required. Our engineers insisted that you get this premium component!
- Night Latch(Optional) – Provides limited ventilation and discourages unlawful entry.
- Recessed Tilt Latches– Both sashes tilt in for easy cleaning from inside your home. Our recessed design maintains a clean and attractive sight line in your window.
- Cam Locks – Heavy duty 180 degree locking cams pull your sashes tightly together for a great seal!
- Self Lubricating Spiral Balances – Designed to achieve smooth, effortless sash operation.
- Insta Lock Shoes– When you tilt your sash for cleaning, an immediate locking action from multi-directional shoe expansion break-points secures the sash in place.
Certification
Window Ratings2
CAN/CSA A440: M2000 – F10, A3, B7,C3, S1
Energy rating of: +29 (Double Glazed with Low E and Argon Gas and a warm edge spacer) U1 value: .33
Energy rating of: +36 (Triple glazed with Low E and Krypton Gas and a warm edge spacer) U1 value: .25
CSA Certified File # 204624
Window Wise Certified
ENERGYSTAR ® Qualified
Configuration
Optional internal grills for beauty and distinction.
